Introduction: The Significance of CPU Thermal Paste in Computer Performance & Longevity!

If you've ever ventured into the exciting world of PC building, you've likely encountered the term "thermal paste." This mysterious substance goes by many names - thermal grease, heat paste, CPU paste - but its function remains crucial: keeping your processor cool. In the fast-paced world of powerfull electronics, heat management is the deciding factor for extracting the maximum performance out of your system. Without efficient heat dissipation, even the most powerful processors can throttle or succumb to permanent damage. This is where Thermal Interface Materials (TIMs) step in, acting as the silent heroes that bridge the gap between heat-generating components and cooling solutions.


Why is thermal paste so important? Because it acts as a silent hero, bridging the gap between your CPU and its cooler. By efficiently transferring heat away from the processor, it prevents overheating and ensures smooth operation.But what exactly makes a TIM effective? The answer lies in a material property called thermal conductivity.


So, how does this thermal wizardry work, and how can you apply it correctly?

Let's dive deeper and explore the fascinating world of thermal paste!


Understanding (TIM) & its Importance!

When Do You Need to Apply TIM?

Thermal Interface Material (TIM), most commonly known as thermal paste, is a crucial element in any situation where efficient heat transfer is critical. Its role lies in bridging the microscopic gaps between two surfaces, enabling smooth heat flow from a heat source to a cooling solution. Here's where TIM comes into play:

  • CPU Cooler Installation: During PC building, applying thermal paste is essential when installing a CPU cooler. CPUs generate significant heat during operation, and the thermal paste acts as a conductor, channeling that heat away from the processor and towards the cooler for efficient dissipation.

  • High-Performance Applications: Beyond CPUs, TIM finds applications in various high-performance electronic components. This includes graphics cards with aftermarket coolers, overclocked CPUs or GPUs, voltage regulators in power supplies, and even some high-power LED projects. In these scenarios, TIM helps ensure optimal performance and component longevity by preventing overheating.

Types of Thermal Interface Material

Choosing the Right TIM: Conductivity Makes a world of Difference & measured in  W/mK (watts per meter-kelvin). Thermal Interface Materials (TIMs) come in various forms, here's a breakdown of two main TIM categories:

  • Non-Conductive TIMs: These are the most common type, typically consisting of a paste or grease base. While their thermal conductivity generally tops out around 15 W/mK (watts per meter-kelvin), their true strength lies in electrical insulation. This makes them ideal for applications involving delicate electronic components like CPUs and GPUs, where electrical conductivity could cause short circuits.

  • Conductive TIMs: These TIMs are also known as Liquid metal and excel in thermal conductivity, often exceeding 70 W/mK or 6X of the best thermal paste available. They're typically composed of metal-based eutectic alloys, offering superior heat transfer compared to non-conductive pastes. However, their high conductivity comes at a cost: they conduct electricity and requires proper insulation of the hardware before installation.

Important Information:

Liquid meatal is electrically conductive and requires a proper insulation of your hardware toavoid any potential damage.

→ Liquid metal is also corrosive to aluminium, DO NOT USE ON ALUMINIUM HEATSINKS OR COOLER BASE PLATE!

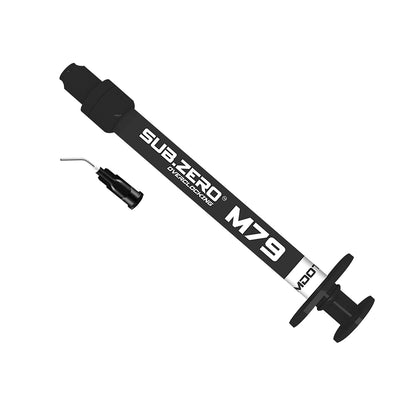

M79 Liquid Metal TIM is a Must Have Product among PC hardware enthusiasts & Overclockers

Even though the metal base of the CPU cooler and the IHS of the CPU look smooth to the naked eye, these metal plates have microscopic imperfections that can result in poor heat transfer. The two surfaces aren’t in full contact due to those imperfections, so thermal paste fills in those air gaps, allowing for a more efficient transfer of heat.

Simply put, thermal paste helps your CPU cooler do its job, and a cooler CPU means less potential performance issues, such as throttling.

Conclusion

In the ever-evolving world of thermal management, staying informed about the latest materials and techniques is key. By understanding the different types of TIMs, their applications, and the factors influencing their selection, you can ensure optimal heat transfer and peak performance for your electronic components. Remember, whether you're a seasoned PC builder or just starting your journey, knowledge is power. So stay tuned for more in-depth explorations into the fascinating world of thermal management!
